PM-10 Series Manual Cyclic Pumps are used in applications where a fixed output of lubricant is desired. With the PM-10 Series, the leverage of the pump handle enables the unit to deliver a higher pressure than most models, providing the ability to lubricate points having some back pressure. This pump is commonly used with meter units in single or multiple point applications. Common applications include punch presses and milling machines where infrequent but reliable lubrication is required.

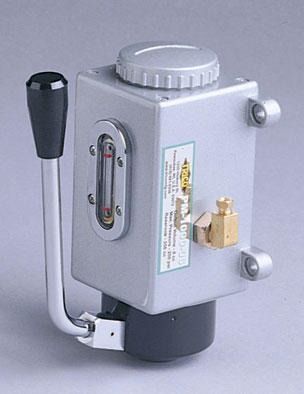

PM-10 Series Manual Cyclic Pump
PM-10 Series Manual Cyclic Pumps are single shot systems that use a manually actuated pump. These pumps use meter units to apportion the amount of oil at each lubrication point.
- Aluminum die cast reservoir provides long life
- Outputs cc/stroke
- Sight gauge provides liquid level observation
- Large fill port for easy adding of lubricant
- Convenient drop-in filter in fill port keeps oil clean
- Meter units, and fittings and accessories are available
Specifications
| Reservoir Material |
Cast Aluminum |
| Pump Type |
Manual Piston Pump |
| Output Connection |
5/16-24 |
| Seals |
Buna-N |
| Operating Temperature |
32-120ºF |
