VM Series Manifolds are used with full flow dispensers and allow Trico applicators to be mounted directly to them. With adjustable adapters and integral needle valves, these manifolds allow easy setting at the point of lubrication.
Options
| Model No. |
Description |
No. of Valves |
Sight |
A Dimensions (in) |
| 35581 |
VM Manifolds |
1 |
Glass |
- |
| 35591 |
VM Manifolds |
1 |
Acrylic |
- |
| 35582 |
VM Manifolds |
2 |
Glass |
- |
| 35592 |
VM Manifolds |
2 |
Acrylic |
- |
| 35584 |
VM Manifolds |
4 |
Glass |
6 |
| 35594 |
VM Manifolds |
4 |
Acrylic |
6 |
| 35586 |
VM Manifolds |
6 |
Glass |
10 |
| 35596 |
VM Manifolds |
6 |
Acrylic |
10 |

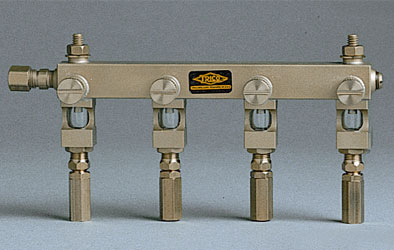

VM Manifolds
- Horizontal design of needle valve minimizes contamination at the valve seat
- VM manifolds have 1 to 6 outlets
- Clean out plugs provide easy cleaning when required
- Heavy wall acrylic or heat resistant glass sights allow easy setting of the desired drip rate
- Silver brazing of all brass construction provides long life and leak proof design
- Used with D and DE Full Flow Dispensers and Applicators
Specifications
| Max. Operating Temp. |
Glass 250ºF Continuous
Acrylic 165ºF Continuous |
| Oil Sight |
Heavy Wall Heat Resistant Glass
Heavy Wall Acrylic Plastic |
| Gasket |
Buna-N |
| Packing Gland |
Graphite |
| Material |
Brass |
| Finish |
Lacquered Satin Finish |
| Needle Valve |
Brass |
