The Mistmatic Coolant System allows the user a wide range of coolant delivery. Variable adjustability allows deliveries such as lean, rich, high velocity, or low velocity. Unit can fill “mini-flood” applications with the dual control valving. This unit can cover most machining requirements. Multiple metal removal processes ranging from broaching to grinding can be covered with the Mistmatic. The pressure pumping design of the Mistmatic allows use with a wide range of coolants compatible with Buna-N seals and lower than 1000 SUS viscosity. Auto electric models can be interfaced with machine controls for cyclic capabilities.
Options
| Model No. |
Description |
Control Mode |
No. of Lines |
Capacity |
Voltage |
| 30600 |
Mistmatic |
Manual |
1 |
1 gallon |
---- |
| 30601 |
Mistmatic |
Manual |
2 |
1 gallon |
---- |
| 30604 |
Mistmatic |
Auto |
1 |
1 gallon |
120 |
| 30605 |
Mistmatic |
Auto |
2 |
1 gallon |
120 |

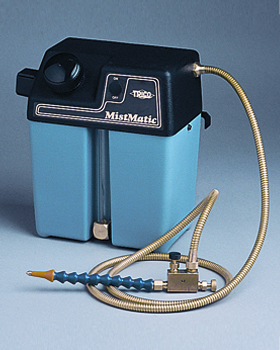

Mistmatic Coolant System
- Pump operated system
- HV-3100 control valve with 7 in. segmented plastic nozzle
- One or two outlet, 5 ft. brass armored lines
- Independently adjusted air and coolant allows for balancing coolant delivery
- Platform design capabilities allow for flexible line/nozzle combinations (consult Trico)
- Easy reading sight gauge
- One gallon reservoir capacity
- Reservoir bracket for easy mounting directly to machining application
- 1 gallon dimension – 10-1/2″H x 8-1/2″W x 6″D
Specifications
| Reservoir |
High Density Polyethylene |
| Sight |
Acrylic Plastic |
| Check Valve |
Brass w/Buna-N Seals |
| Seals |
Buna-N |
| Delivery Lines |
5 ft. Armored Brass |
| Coolant Tube |
Polyurethane |
| Valves |
Brass |
| Solenoid |
Brass Body & S/S Plunger |
| Nozzle |
Flexible Segmented Plastic Standard |
| Pump |
Acetal Copolymer w/Buna-N |
| Tubing |
Polyurethane |
| Air Inlet |
1/4 NPT |
| Air Inlet Pressure |
50-100 PSI |
