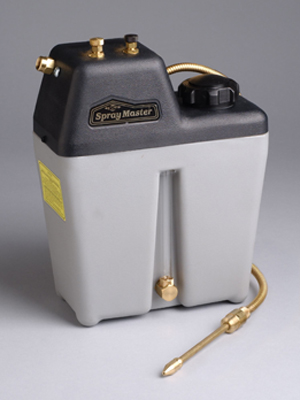

Spraymaster Coolant Systems provide convenient spray cooling in metal cutting operations. Requiring only compressed air as a power source, these units are easily installed in many machining applications.
The Spraymaster is designed for use with Tri-Cool TC-1 Synthetic Coolant. Various mixtures of coolant to water may be used depending upon individual requirements.
Stainless steel reservoir versions are available with the same performance features as the standard Spraymaster.
Options
| Model No. |
Description |
No. of Lines |
Reservoir |
Capacity |
Line Length |
| 30542 |
Spraymaster |
1 |
Polyethylene |
1 gal. |
5 ft. |
| 30543 |
Spraymaster |
2 |
Polyethylene |
1 gal. |
5 ft. |
| 30549 |
Spraymaster |
2 |
Stainless Steel |
1 gal. |
5 ft. |
| 30548 |
Spraymaster |
1 |
Stainless Steel |
1 gal. |
5 ft. |
Spraymaster Coolant System
- Siphon delivery system
- Air and coolant are independently controlled by solid brass precision needle valves
- Brass armored lines are a standard 5 foot length
- 6 in. straight nozzle is designed so atomizing takes place at nozzle tip for enhanced pattern control
- Mounting bracket included for easy installation
- 1 or 2 outlet line models provide maximum flexibility
- Liquid level gauge easily indicates coolant level at a glance
- Polyethylene dimensions: 12-1/4″H x 10″W x 5-1/4″D
- Stainless steel dimensions: 9-3/8″H x 8-3/8″W x 5-1/4″D
Specifications
| Cover |
High Density Polyethylene |
| Reservoir |
High Density Polyethylene or 20 gauge 304 Stainless Steel |
| Valves |
Brass |
| O-Rings |
Buna-N |
| Delivery Line |
Brass Armored |
| Coolant Tube |
Polyurethane |
| Fittings |
Brass |
| Filter Element |
40 x 40 Mesh Stainless Steel |
| Air Inlet |
1/4 NPT |
