Trico, V Series, 1 Outlet, Acrylic, 30271

There is a $100 Minimum Order for Trico Products

Part Number: 30271

no ratings

0 reviews

Estimated Ship Date:

For Price Contact Us

Price $74.95

Original 74.95

Savings

Quantity

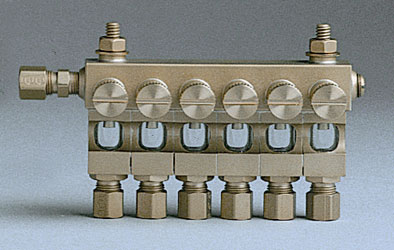

V Series Valves are used with full flow dispensers where feed rate adjustment is desired at the point of lubrication.

Options

Model No.	Description	No. of Valve Outlets	Sight	A Dimensions (in)	B Dimensions (in)	C Dimensions (in)
30171	V Series	1	Glass	2	5/8	-
30271	V Series	1	Acrylic	2	5/8	-
30172	V Series	2	Glass	2-11/16	31/32	-
30272	V Series	2	Acrylic	2-11/16	31/32	-
30174	V Series	4	Glass	4-1/16	1-21/32	-
30274	V Series	4	Acrylic	4-1/16	1-21/32	-
30176	V Series	6	Glass	5-7/16	5/8	3-7/16
30276	V Series	6	Acrylic	5-7/16	5/8	3-7/16

Horizontal design of needle valve minimizes contamination at the valve seat
V Series Valves have 1 to 6 outlets
Clean out plugs provide easy cleaning when required
Heavy wall acrylic or heat resistant glass sights allow easy setting of the desired drip rate
Silver brazing of all brass construction provides long life and leak proof design
For use with D and DE Full Flow Dispensers

Max. Operating Temp.	Glass 250ºF Continuous Acrylic 165ºF Continuous
Oil Sight	Heavy Wall Heat Resistant Glass Heavy Wall Acrylic Plastic
Gasket	Buna-N
Packing Gland	Graphite
Material	Brass
Finish	Lacquered Satin Finish
Needle Valve	Brass

Weight: 0.00 lbs Length: 0.00 inches Width: 0.00 inches Height: 0.00 inches
